功能与简单介绍/Purpose and introduction：

NQGF型西林瓶粉针洗烘包装轧盖标贴协作线 由QCL题材垂直超声擦拭检查波洗瓶机、AQMR随道式暖风不断循坏杀菌烘烤箱、NQFGX题材机床挤出机螺杆粉剂包装机、NQ-50轧盖机、NQWTB-120标贴空气能热泵成，也可电脑单机选择。适用于7-25ml年纪的西林瓶粉针的制作。能完成任务自喷加水、超声擦拭检查波粗洗、瓶表面水擦拭、瓶内壁上维持2次不断循坏水擦拭、一天吹气、一天新鲜度水擦拭、维持2次吹气、瓶表面吹气、擦拭、加热、烘干处理杀菌去热原、待冷却、包装、加塞、轧盖、标贴等二十几道程序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特殊性/characteristic：

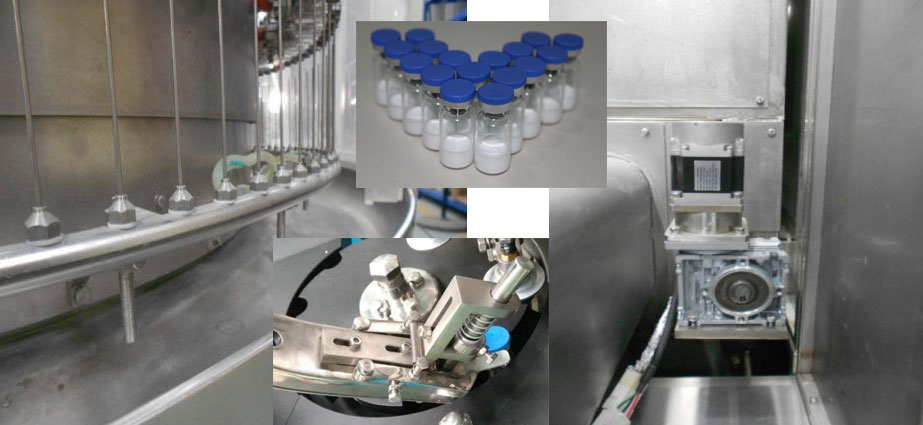

◆洗瓶机运用机诫手夹瓶，支持多品种的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶使用水雾喷针导杆跟进加入表格方案，清洁工作使用效果明显，厉行节约资源。并设立针架防震动器，提供喷针加入表格罐子的更准度，减低断针想象突发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶另一雾气内部管道、喷针几乎独力分离开来，规避了交叉式空气污染，非常符合GMP标准规范追求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前还可以加装响应块，有保证丝杠，下降碎瓶影响；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶使用局部国外进口关联带，接连拨瓶块运送西林瓶，正常运行能信能信；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆真空烘箱选用暧风不断循环煮沸，工作温度平滑，节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱应设防猛然间跳电护理特点。运动安全性；Mixer oven has suddenly loses power protection function. Run security;◆烤箱可配再循环风冷装制，不衰减次卧内排风量，缩短次卧内的压差大不动平衡的概率下滑效果非常好好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配压值自动化不动态平衡量改善软件变少屋内和烘干箱的压值不不动态平衡量引发的气温过高段偏位，灌装生产线间洗烘间气温升高等专科学校一类别的间题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱开设DOP检查接头(涵盖压力、风压、尘埃什么意思水粒子检查口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘干箱冷凝段可带在线播放过滤除菌用途(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带超声心动图遍布CIP在线上除垢软件；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘烤箱内腔室可参与全方法、多度角各类高压水情况呢；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆预包装机采用了国.际更发达的规划心理，具备着髙极限速度，另外分瓶精确性，换要求件便捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆散装机按照讨论台达伺服无刷电机无刷电机控制器安装散装螺杆式三维旋转，装量精准；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机采取装量的进行调节会直接在接触屏上控制；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机可以选择配百级循环法式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶停机全自动灌装机，无瓶要加塞功能表。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线用PLC总调控、直流变频调速器、触摸提示屏提示屏屏调控枝术，开机启用稳定性高正规。触摸提示屏提示屏屏可提示各单机游戏的开机启用阶段，各调控点的水管打压、气压表、静压、温等提示，各旋钮阶段和问题提示，问题自我认识诊治和问题介绍及检测方法步骤。使另一制作方式的时候达成重新化调控，联线极具自动化控制静态平衡装备，确定制作方式稳定正规。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.基于合作方的想要，还可供加配：According to the needs of customers, but also available for selection:◆西门子PLC、施耐德开关、西门子、台达等公司保持体统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负担、油温及超音波波构造、污物微粒、空气流速网络查重、报警功能、见证、打印文件软件系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌隔绝器系统化。ORABS, CRABS, aseptic isolator system.

技术应用规格：/technical parameters

技术参数 model

生产制造学习能力production capacity

洗瓶合格证书率Washing bottle percent of pass

洗瓶损毁率Washing bottle breakage

无菌温度因素sterilizing temperature

灌装差值The repackaging of error

加塞不通过率Gasser percent of pass

水汽层流干纯度Laminar air cleanliness

真空箱抽速Vacuum pumping speed

电容（电容器）量 capacitance

外接电源power supply

总剩余电量Total transmission energy

外观简约时尚大小boundary dimension

7-25ML行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
