适用范围与简洁：Purpose and introduction

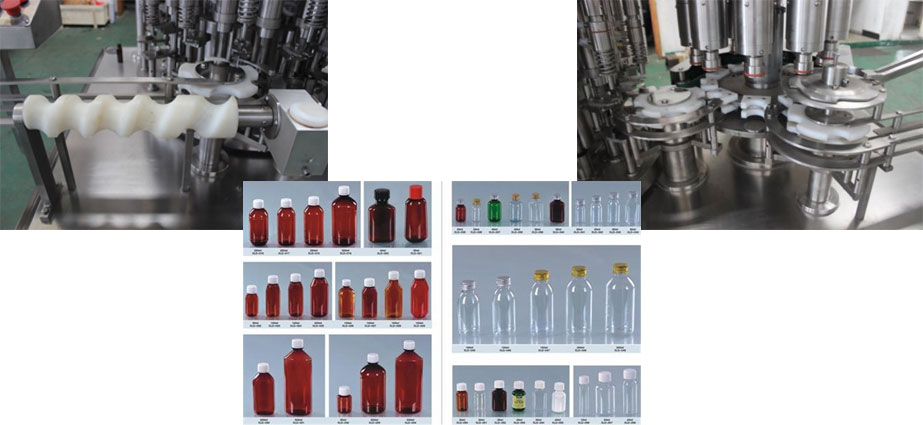

该装置选使用在对30-500ML系列的窗塑瓶子、塑瓶的装罐封好。采用了经济往来过往式连杆做出装罐，电磁感应振荡器送盖，就能够轧盖(金属材质式)或旋盖(塑盖)封好，就能够和左右侧的生产销售的程序装置快速连接结构生产销售的线，除外就能够在选购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特征 ：characteristic

装量准确度，杜尽渗漏。缺瓶不装灌。 定频调节。 主动的凸显记数作用。 整个机械均按GMP需求定制。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

新技术主要参数/technical parameters：

型号 model	NQGX30-500
实用规格参数Cutting dimension	30-500ml
生厂水平Production capacity	80-200瓶/分（罐/分鐘）80-200 bottles/min (cans/min)
分装精度等级 Filling accuracy	≤±1%
电源开关 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械制造毛重 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
