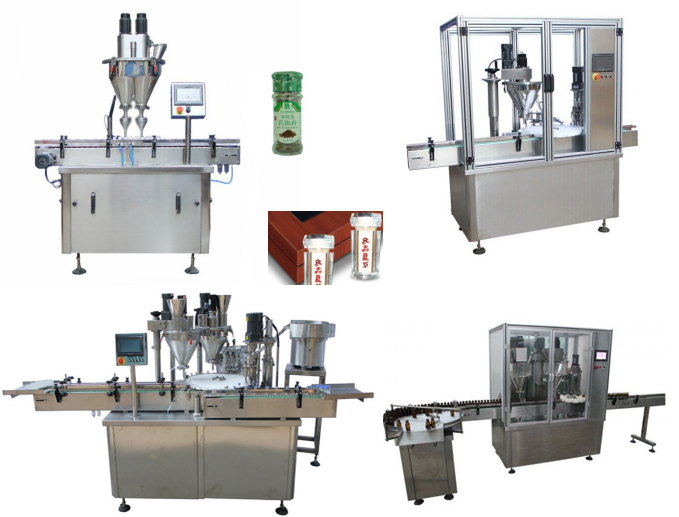

NQFGX-50型全自动粉剂灌装压塞旋(轧)盖机

产品详情Product Details

环保设备详细介绍/Brief introduction:

远程服务器是在引💎进技术工艺和释放欧美国家领先技术工艺的基础理论上,应该由我单位人工控制研究开发的一个靠谱根据西林瓶的灌装线、上塞、旋(轧)盖机。远程服务器实用德国全出口高精密度敞开式式凸轮机构测量范围工序器,精密性高,启用可靠性,实用人类期限长。该测量范围器结构设计简短,长时间实用需不需要维修费。

该设备主要应中用各样粉剂装灌、压塞及旋(轧)盖,如青霉素金属粉、胶原蛋******末、冰硼散金属粉、农药杀虫剂金属粉、胡椒金属粉等。密切中用保健食品、药业有限公司、医药化工市场及成果转化方面。此机既可单人产生,又可与洗瓶机、干机等设备分解成协同产生线。充💯分符合部委部委GMP要。

It is built in the absorption of foreign advanced tecnol✅ogy, based on independently developed by the company ,It is the domestic leading level.

This machine is suitable for a variety of small dose♍s of powder filling&capping such as Penicillin powder, Collagen powder,Pesticides powder and so on. Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements.


显著特点/Characteristic:

◆组排画面调整、方法最直观非常方便、PLC把握,装量*。

Human-machine interface setting♐s, an easy and intuitive, PLC control, the amount of precision equipment.

◆变频柜掌握、产出转速同样改善、会自动记数。

Frequency ꧋control, the production rate be adj😼usted automatically count.

◆电脑自动宕机用途,无瓶不分装。

No bottle no filling.

◆圆轮位置定位式罐装,平衡靠普。

Disc positioning filling, stable and reliable

◆高精密度等级气缸度数计操控,准确定位*。

High-precision cam meter 🥀coꩵntrol, precise positioning.

◆用SUS304及316L不锈钢材质营造,非常适用GMP的要求。
SUS304 and 316L stainlessꦅ steel, full compliance with GMP requirements.


方法主要参数/technical parameters

装量领域 Filling volume

2-500g

装量误差值loading error

≤ ±1%

旋(轧)盖达标率Rotation (rolling) Cover pass rate

≥99%

制造本事  Production capacity

30-50瓶/分&nbs𝓀p;钟  低转速 60-80瓶📖/分 钟   高速的

30-50 bottles / min  60-80 bottles / min

罐装途径 Filling way

  螺旋轴压力容器检验装灌Metering screw filling

压塞率Tamponade rate

≥99%

电源线Power

380V/50Hz

电功率 Power

2.0 kw

工具总重量 Net weight

700 kg

外貌长宽比 Dimension

2000*1000*1800mm
