应用场景与简绍/Brief Introduction：

远程服务器是抗衡冲剂药液磨砂玻璃钢酒瓶的新设备，根除解决处理了一直以来冲剂药液磨砂玻璃钢酒瓶的缺陷体验。这类灌封机所要的PVC瓶，不仅仅不都要洗瓶机、烘烤机，更不都要杀菌消毒，可随时灌封。此机全定时理瓶、进瓶、装罐，装罐量保持可靠，无漏滴，无瓶不装罐。上盖、封口处率电动车续航100%。此机工艺专业，表面积小、启用保持可靠、噪声污染低，操作步骤抢修、清理方面等优势，齐全满足GMP标淮。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本型号查询有减速和高每种销售量供您选用。Note: this model has two kinds of low speed and high-speed production for your choice.

优势 Characteristic

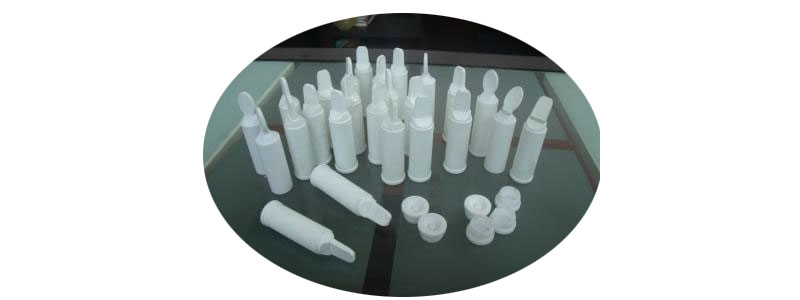

◆机器适宜于各样易折瓶服食液量值溯源包装和密封。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆几乎所有电器构件构件均选用产品产品。All electrical components adopt famous brand◆滤油机操作使用直观性 便宜，无瓶不灌装生产线，计量检测*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑瓶灌封机的包括成分与的基本原理Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型服食液易折朔料瓶灌封机最主要的理瓶器、理盖器、主传输操作系统、同歩带开距送成瓶置、瓶子检漏传动裝置、包装中介组织、除去传动裝置、热熔胶封中介组织、气动式机械厂指尖夹瓶中介组织、伺服线束三相异步电机开距上瓶中介组织与出瓶中介组织等包含。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆机器设备施用的服食液易折塑料制品瓶、盖一定干净干燥区的生产的，应为药袋材允许证，因而瓶身与底盖经传送和"去外协"后可一直进灌封间。经过理盖器、理瓶器的半自动定向生就业收集，去掉返向底盖及瓶身底口朝下的瓶，使定向生就业后的包材喂料有要求地进输送带轨道列车中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向招生后服食液易折塑料材质瓶在推送正轨后排Directional oral liquid after folding plastic bottles in conveying rail out easily

水平参数指标technical parameters：

型号model	NLGFY-40	NLGFY-80
装量领域The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封好率Hot sealing intensity	》99%
装量误差值The load error	《1.5%
状态率damage rate	《1.0%
工作效率power	2KW	3KW
电压Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
体重 Weight	700Kg	800Kg
