功能与简洁/Brief Introduction：

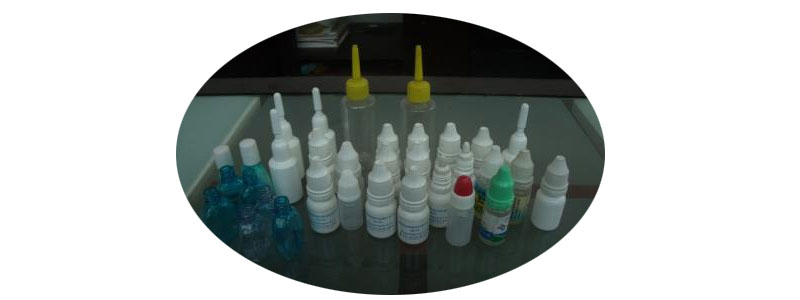

机器不适使用于2-30ML不同的材質的椭圆形扁形泡沫塑料或破璃瓶的眼药粉装灌、电子器材烟油等小含量装灌.机器由高精密度凸轮轴组织 度数组织 展示度数等分盘准确手机定位上塞上盖;1度凸轮轴组织 转动展示旋盖头的生降;恒最大扭矩旋盖;颤动泵量值溯源检测装灌;触摸式屏保持.无瓶不装灌,不用内塞,外盖.具准确手机定位精密,转动稳定,保养瓶塞,量值溯源检测准.控制简单易行等的优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

作用/Characteristic：

◆微线上调节、装量小于、作业快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器轉速可开展无极变速直流变频可控硅调压。the mainframe running speed is stepless frequency conversion.◆生产制造量自主化学发光法保持。the product quantity can be controlled. ◆多内部故障建议技能(如低标准气压。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停止工作，对某个行列展现维持无罐装、无内塞情况下可智能停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺运作/Main Technical Parameters：

适合型号Filling Volume	2-30ml
的生扩产力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装罐精密度Filling Precision	≤±1%
外接电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自動上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
刷卡机净含量Weight	550 kg
外观简约时尚大小Dimension	1800*1000*1500mm
