应用与筒介/Brief Introduction：

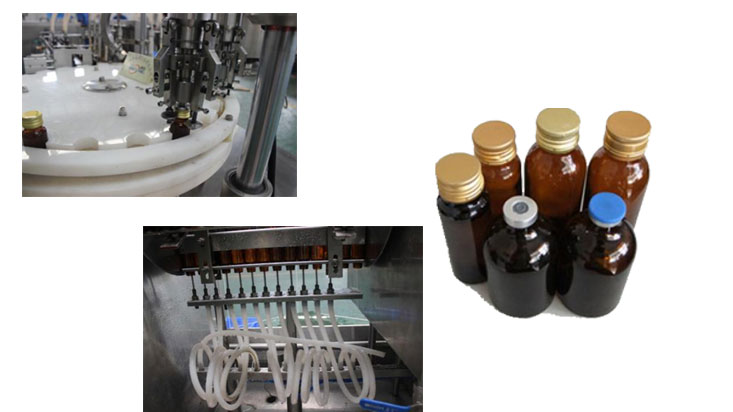

本研发线满足30ML往上口服药液的装罐机器设备研发，由供瓶机、滚简洗瓶机、直线行驶式装罐机器设备轧（旋）盖机、直列V型标贴纸签机等机器设备成分，可全自动化操作的来完成理瓶、洗瓶、装罐机器设备、上盖、旋（轧）盖、标贴纸签等工作。最主要的在制药业、食品饮料、化工机械的的一些固体介质的装罐机器设备联调研发。本研发线完完全全符合国家GMP的标准。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特别 /Characteristic：

◆长相布料材质为304304不锈钢管，罐装前半部采316L304不锈钢管，契合GMP实验室管理标准。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可适用多产品规格工作。can be situable for several bottle specs.◆正常运行平稳，风噪小，分装精准 。Stable running,low noise,precise filling.◆破瓶率低，原料完成率高，碳排放量少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整件制造线可单机版掌控和品牌加盟掌控。The whole line can single machine control or interlock control.

科技指标/Main Technical Parameters：

采用尺寸规格Filling Volume	30-150ML
罐装头数Productivity	慢速4头         &nb♑sp;&🐼nbsp;   极速8头 4 at low speed             ﷺhigh speed 8
生产的功能	慢速30-50瓶/分     髙速70-100瓶/分 30-50bottles/min  70-100bottles/min
罐装误差Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电源适配器Power Supply	220V/50Hz
工作功率Power Supply	2.5kw
制作线总长Dimension	7500*1000*1700MM
