使用与简洁/Brief Introduction：

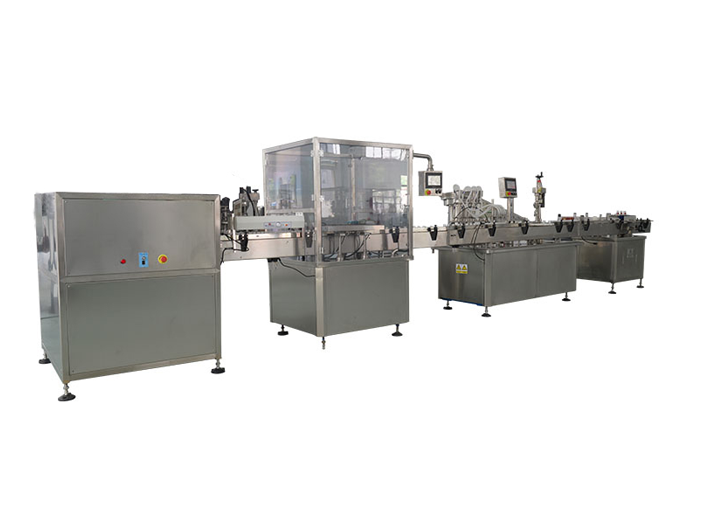

本出产线由全半自动理瓶机、罐装旋（轧）盖机、垂直标贴签发电机组成，可成功理瓶、罐装、旋（轧）盖、标贴签打马赛克等环节，最主要的使用于抑尘喷洒剂硫酸铜溶液的联线出产.多应使用于药业、物品、所有等企业。齐全符合必须GMP必须.This filling line is consisted of the Autpmatic Bottle Unscrambler,\Filling & Capping Machine and Vertical Labeling Machine. It can do Unscrambling bottle,filling,capping and labeling,be,mainly be used in the spray liquid filling production. Meet the GMP requirements.

优缺点/Characteristic：

◆理瓶机系更新系统设置，齐全充当简单手工，包含GMP标准。It’s a newly designed equipment, in place of handwork, comply with GMP standard.   ◆线路式或圆筒定位系统式装罐旋（轧）盖机基本操作便捷的、装罐*、可供选择择的不同的产量的速度。Filling & Capping Machine with trait of precise metering, easy operation, and productivity is optional.◆直列V型标贴签机适用PLC及伺服调速电机调速电机抑制，标贴签*，高内容有效率，有热打码机。   Vertical Labeling Machine controlled by PLC and stepping motor, precise labeling, high efficiency, with hot Coding。

技术性性能参数/ Technical Parameters：

适用人群規格Filling Volume	15-500ml
生产制造学习能力Productivity	30-45瓶/分 60-80瓶/分 30-45bottles/min 60-80bღottles/min
分装gps精度Filling Precision	≤±1%
旋（轧）盖率Capping Rate	≥99%
电源适配器 Power Supply	220V/50Hz
工作效率Power	2.8 kw
产生线总长Dimension	7000*1000*1700mm
